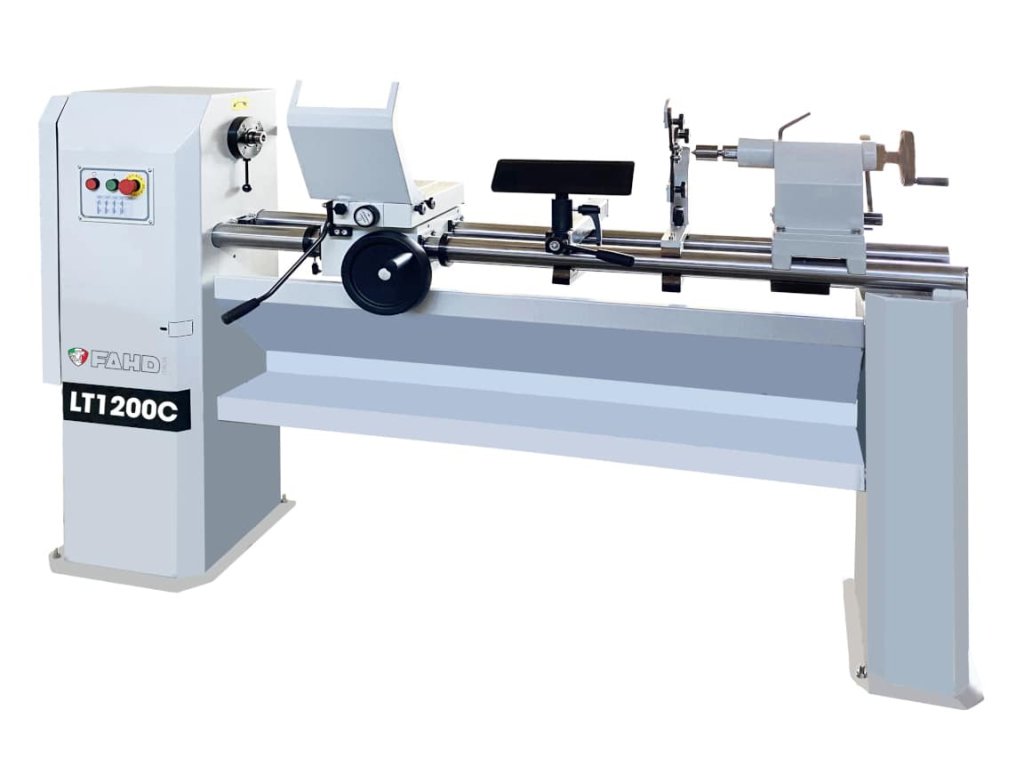

Soustruh FAHD LT 1200 C

Skladem
Kód: 796
Kategorie: Soustruhy na dřevo
LT 1200C

Technical data

Distance between centres mm 1200
Height of centres over bed mm 215
Max. turning diameter mm 430 (max. square mm 300)
Max turning diameter with copying device mm 215 (max. square mm 150)
Useful copying stroke mm 1100
Chuck speed rpm 500/1000/2000/2800
Motor power HP 1,5
Weight kg 390



  • Manual copying device
  • Copying tool
  • Gouge support mm 350
  • Chuck entrainer ø 25 mm
  • Rotating tailstock
  • Service spanners
  • Self-braking motor

UPON REQUEST



INVERTER 0-3500 RPM





AUTOMATIC COPIYNG DEVICE





SINGLE-PHASE MOTOR





SANDING PLATE WITH SMALL TABLE





DRILL CHUCK





MOVING STEADY WITH TOOL MAX. ADMITTED. Ø 100 MM (MAX. SQUARE 70 MM)





REDUCTION RINGS FROM 10 MM TO 70 MM





SELF-CENTERING CHUCK 3 JAWS / Ø 80 MM





SELF-CENTERING CHUCK 4 JAWS / Ø 80 MM





SELF-CENTERING CHUCK 3 JAWS / Ø 100 MM





SELF-CENTERING CHUCK 4 JAWS / Ø 100 MM





SELF-CENTERING CHUCK 3 JAWS / Ø 125 MM





SELF-CENTERING CHUCK 4 JAWS / Ø 125 MM





DRIVING PLATE Ø MM 220





LONGER GOUGE SUPPORT WITH DOUBLE ATTACHMENT (MM 800)





TAPER FEEDER Ø MM 40-50-60





SCREW FEEDER Ø MM 100





COPYING TOOL





HANDTOOLS (NR.5 PCS)





PROFESSIONAL HANDTOOLS (NR.6 PCS)





DRAGGING CHUCK Ø MM 25
