Soustruh FAHD KONTOUR 1200-1500 C

Kód: 802
Značka: FAHD
0 Kč 0 Kč včetně DPH
Kategorie: Soustruhy na dřevo
KONTOUR 1200C

Lathe with Manual Copying Device KONTOUR 1200C – KONTOUR 1500C

Technical data

KONTOUR 1200C KONTOUR 1500C
Distance between centres mm 1200 mm 1500
Height of centres over bed mm 240 mm 240
Max. turning diameter mm 460 (max. square mm 330) mm 460 (max. square mm 330)
Max turning diameter with copying device mm 200 (max. square mm 130) mm 200 (max. square mm 130)
Useful copying stroke mm 1100 mm 1400
Chuck speed rpm 900/1500/2100/2800 rpm 900/1500/2100/2800
Motor power HP 3 HP 3
Weight kg 330 kg 340

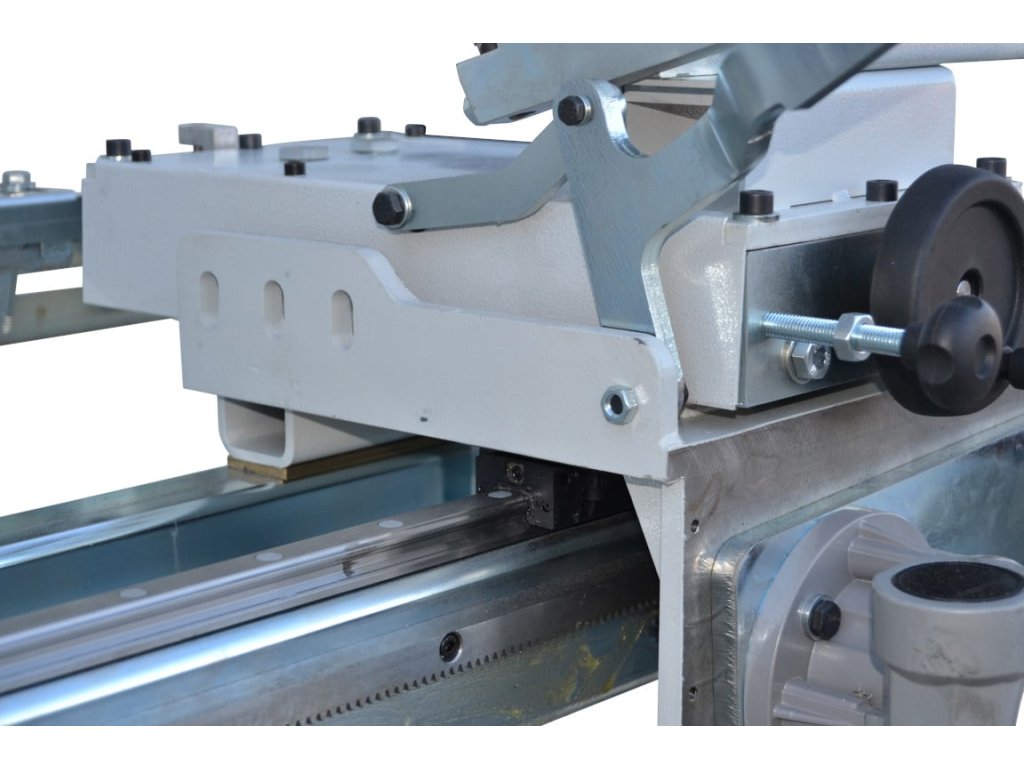

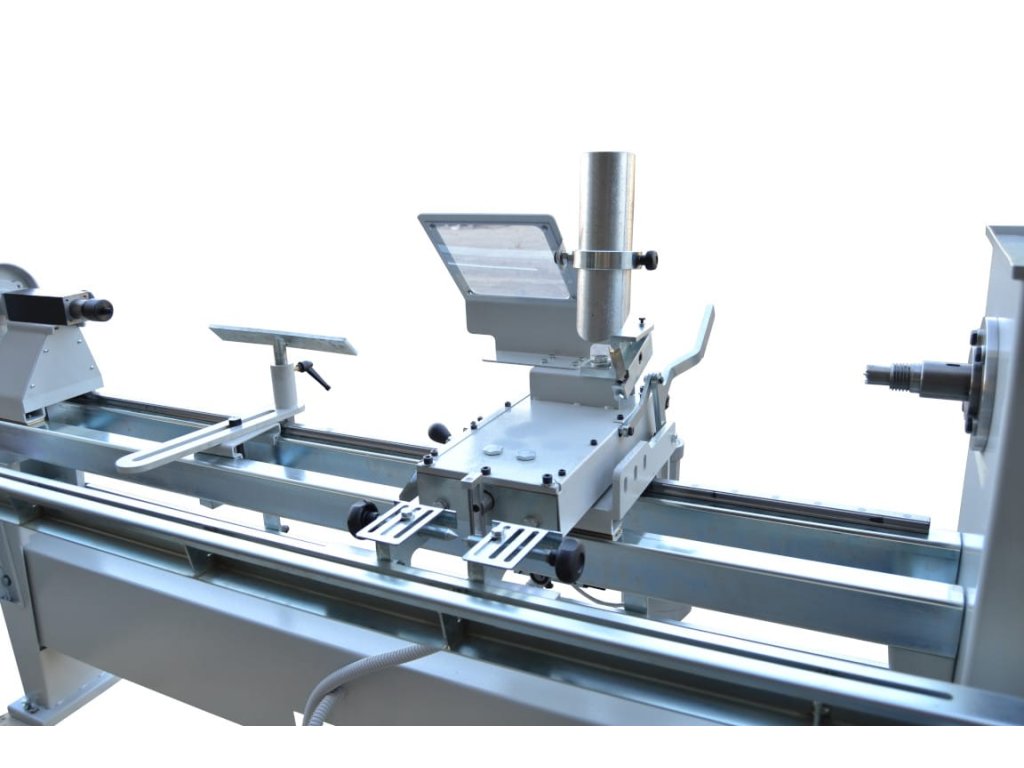

  • Manual copying device
  • Copying tool
  • Gouge support mm 350
  • Chuck entrainer ø 25 mm
  • Rotating tailstock
  • Service spanners
  • Self-braking motor
  • Dust extraction hood ø 80 mm

UPON REQUEST



INVERTER 0-3500 RPM

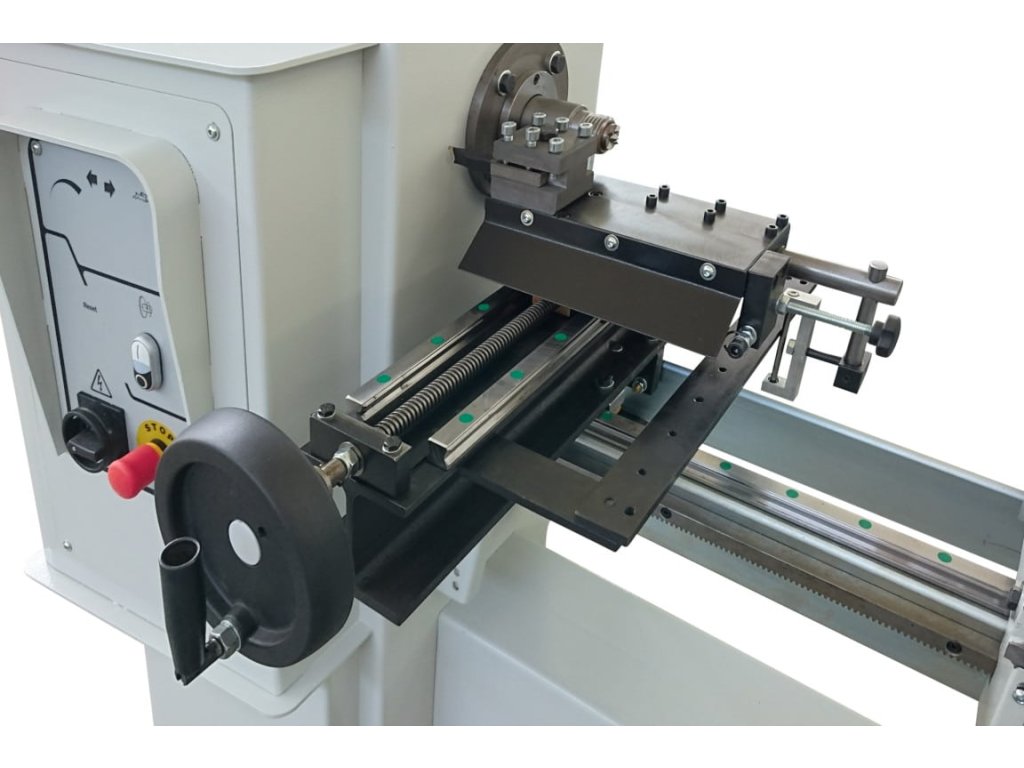

TRANSVERSAL COPYING DEVICE





OVERLOAD PROTECTION





SINGLE-PHASE MOTOR





DRILL CHUCK





SANDING PLATE WITH SMALL TABLE





MOVING STEADY WITH TOOL MAX. ADMITTED. Ø 100 MM (MAX. SQUARE 70 MM)





REDUCTION RINGS FROM 10 MM TO 70 MM





FIXED STEADY





SELF-CENTERING CHUCK 3 JAWS / Ø 80 MM





SELF-CENTERING CHUCK 4 JAWS / Ø 80 MM





SELF-CENTERING CHUCK 3 JAWS / Ø 100 MM





SELF-CENTERING CHUCK 4 JAWS / Ø 100 MM





SELF-CENTERING CHUCK 3 JAWS / Ø 125 MM





SELF-CENTERING CHUCK 4 JAWS / Ø 125 MM





DRIVING PLATE Ø MM 220





LONGER GOUGE SUPPORT WITH DOUBLE ATTACHMENT (MM 800)





TAPER FEEDER Ø MM 40-50-60





SCREW FEEDER Ø MM 100





COPYING TOOL





HANDTOOLS (NR.5 PCS)





PROFESSIONAL HANDTOOLS (NR.6 PCS)





DRAGGING CHUCK Ø MM 25





ROTATING TAILSTOCK Ø MM 40





REAR REST FOR OUTBOARD TURNING





UPPER PROTECTION ON ALL THE LENGTH
